I/O
Super Speed USB 3.0 x 2
2 in 1 Audio + USB type-C


BAYS
1 x 3.5” or 2 x 2.5”
5 x PCIe Expansion Slots (reusable covers)
FANS
M/B side: 3 x 120mm
Rear: 1 x 120mm
Top: 3 x 120 / 2x 140mm
Bottom: 1 x 120mm

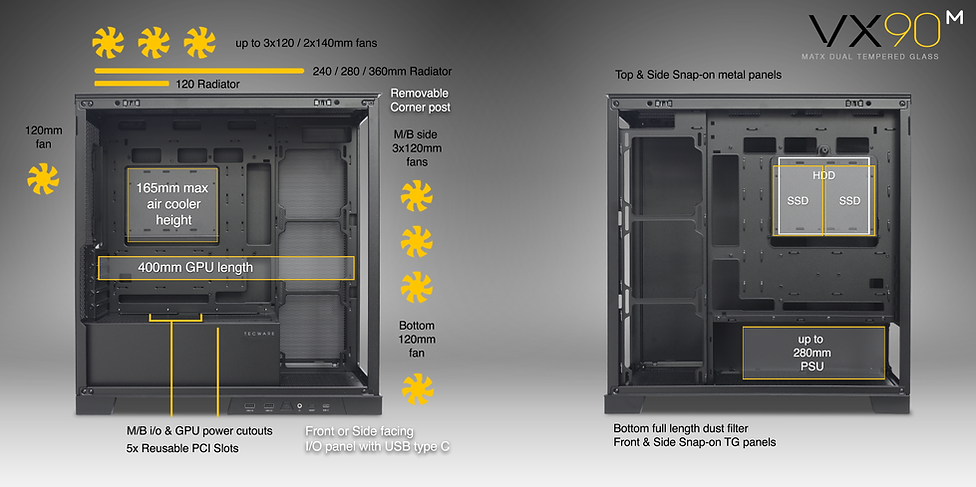

SUPPORT AND CLEARANCE

400mm Max GPU Length

270mm if with M/B side radiator
165mm Max CPU Cooler Height
280mm Max PSU Length
mATX, ITX motherboard



RADIATOR CLEARANCE

M/B side: 120 / 240mm

Rear: 120mm

Top: 120 / 140 / 240 / 280 / 360mm

OTHERS

Bottom full length magnetic filter
Front & Side Tempered Glass
Removable corner post (4 screws)

2-position I/O panel

SIZE

Dimensions: L440*W220*H455mm
Weight: 8.0kg
