2nd Generation
Improved bottom base for more stability, more compact, and featuring a enhance streamlined PWM Fans.

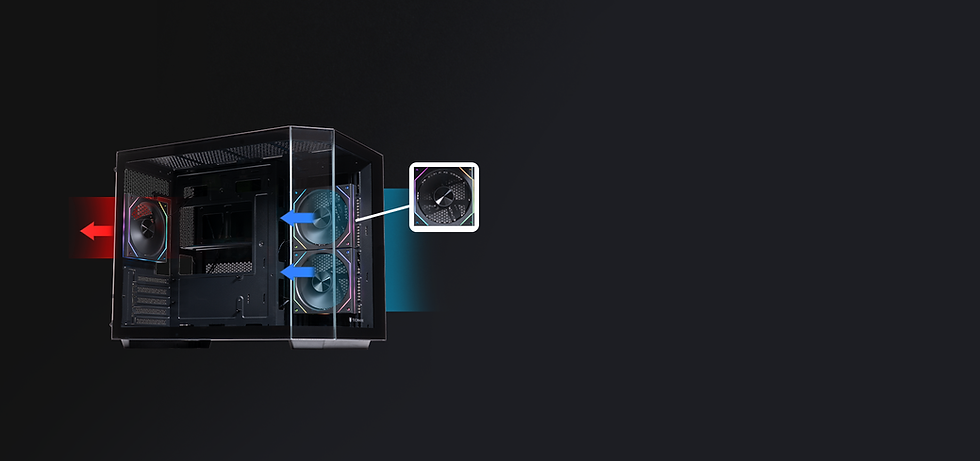

Reversed Blades for
Front-facing
Side Intake Fans
RGB & Airflow
Pre-installed with 3 x 120mm ARGB + PWM Fans (Daisy-chained) for optimal airflow.
*Requires a 3-pin 5V ARGB header on the motherboard or external ARGB hub to toggle LED colors.
Triple Side Tempered Glass
Trinity 2M delivers the same panoramic glass design and dual-chamber layout.
Perfect for smaller builds, while still offering excellent airflow and versatility.
Removable
SSD/HDD
Tray
Up to 155mm
CPU Cooler
Height
Up to 420mm GPU Length
Up to 245mm
Max PSU Length
2x HDD
3x SSD
Back:
1x 120mm
RGB Fan
(included)
Side:
2x ARGB Reverse 120mm
Fans
(included)
Up to 3x 120mm or 2x 140mm fans
Up to 240/280/360mm Radiator
Cable Routing Holes
Up to 3x 120mm or 2x 140mm fans
Cable
Routing
Holes
I/O
Super Speed USB 3.0 x 1
USB 2.0 x 1
HD Audio x 1
USB Type-C x1
BAYS
2 x 3.5” HDD
3 x 2.5” SSD
5 x PCI Expansion Slots
FAN SUPPORT
Motherboard Cover: 2 x 120mm (Included) or 2 x 140mm (Optional)
Top: 3 x 120mm (optional) or 2 x 140mm (optional)
Rear: 1 x 120mm (included)
Bottom: 3 x 120mm or 2 x 140mm (optional)
SUPPORT AND CLEARANCE
420mm Max GPU Length
155mm Max CPU Cooler Height
245mm Max PSU Length
mATX, ITX Motherboard
RADIATOR CLEARANCE
Top: Up to 240/280/360mm
Side: Up to 240/280mm
SIZE
Dimensions: L430*W277*H372mm
OTHERS
Top & Bottom Dust Filter
