Dual Chamber

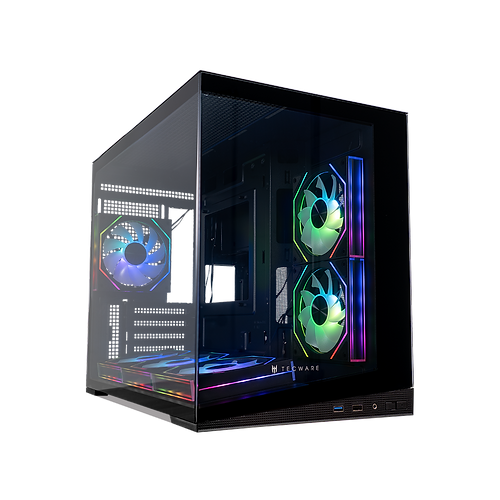

VERTEX, featuring a compact form factor with a dual-chamber design, with specialised bottom fan cooling structure for optimal GPU temperature performance.

Artboard 2.png

RGB & Airflow

Pre-installed with 6 x 120mm ARGB + Side Mirror Design PWM Fans (Daisy-chained) for optimal airflow.


*Requires a 3-pin 5V ARGB header on the motherboard or external ARGB hub to toggle LED colors.

Reverse Fan Included

Artboard 5.png

Bottom Fan Mounting Hybrid Structure

VXO M comes with a 30-degree bottom fans mounting frame, intake airflow directly onto the horizontal-mount GPU

VXO M offering a MATX Motherboard support, as well with 5 Slot of PCI-E expansion slots, and support for maximum 415mm GPU Card.

Artboard 4.png

2x 3.5" Hard Disk

1x 2.5" Hard Disk

Up to 155mm

CPU Cooler

Height

Up to 415mm GPU Length

Up to 148mm

Max PSU Length

Back:

1x 120mm

RGB Fan

(included)​

Side:

2x ARGB Reverse 120mm

Fans

(included)​

Up to 3x 120mm

Up to 360mm Radiator

Cable Routing Holes

Up to 3x 120mm fans

I/O
Super Speed USB 3.0 x 1
USB 2.0 x 1
HD Audio x 1
​
BAYS
2 x 3.5” HDD
1 x 2.5” SSD
5 x PCI Expansion Slots
​​
FAN SUPPORT
Top: 3 x 120mm (optional)
Side: 2 x 120mm (included, reverse fan)
Rear: 1 x 120mm (included)
Bottom: 3 x 120mm (optional)
​​

SUPPORT AND CLEARANCE

415mm Max GPU Length
160mm Max CPU Cooler Height
180mm Max PSU Length
Support For mATX, ITX Motherboard


RADIATOR CLEARANCE
Top: Up to 360/240mm

​​

SIZE

Dimensions: L425*W275*H360mm


OTHERS

Top & Bottom Dust Filter
