I/O
USB 3.0 x 02 + HD Audio

BAYS
Up to 5 x 3.5" HDD
Up to 7 x 2.5" SSD
4 x PCIe slots (Horizontal)
2 x PCIe slots (Vertical)
FANS
Up to 7 Fans
Top: 2 x 120mm (1x included)
Bottom: 2 x 120mm
Side: 2 x 120/140mm
Rear: 1 x 80mm

RADIATOR SUPPORT

Side: 120/240mm

Bottom: 120/240mm

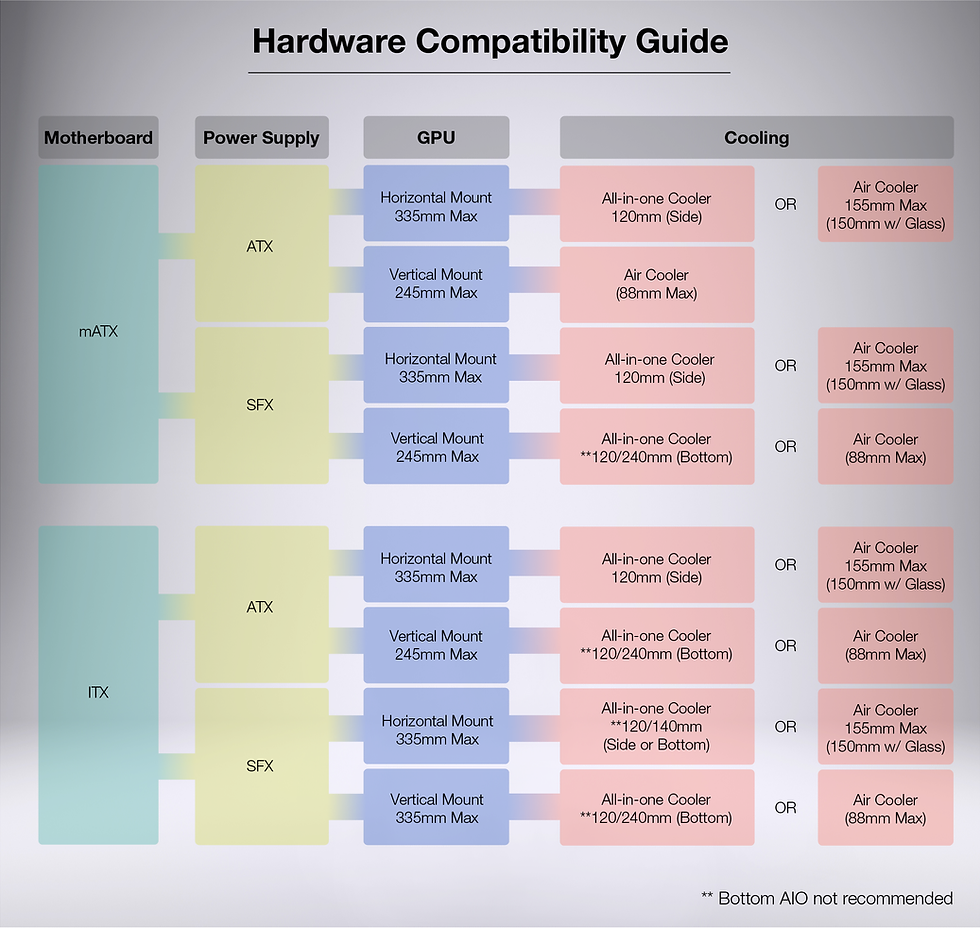

HARDWARE CLEARANCE

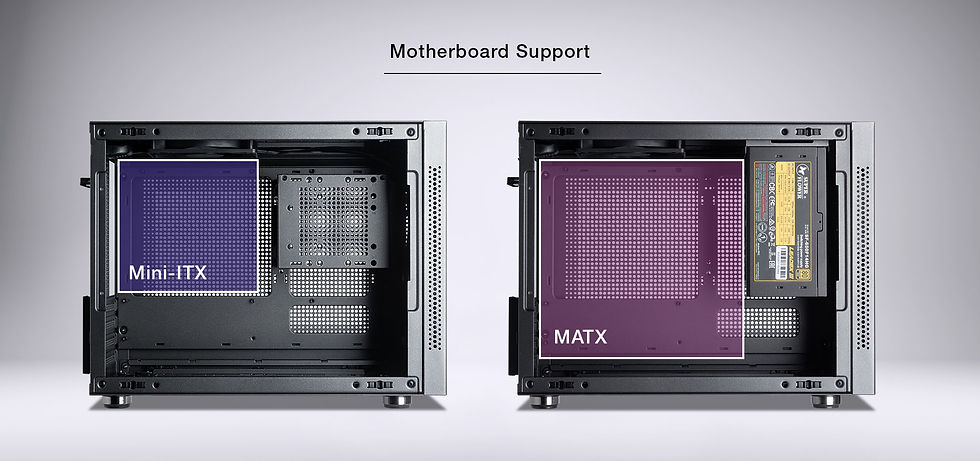

mATX / ITX - Motherboard

ATX / SFX-L / SFX - Power Supply

335mm Max GPU Length (245mm w/ ATX PSU)
155mm Max CPU Cooler Height (150mm w/ Glass, 88mm w/ Vertical GPU)
160mm Max PSU Length (if GPU length >245mm)

SIZE & WEIGHT

Dimensions: L391*W185*H303mm

Weight: 5.3Kg
